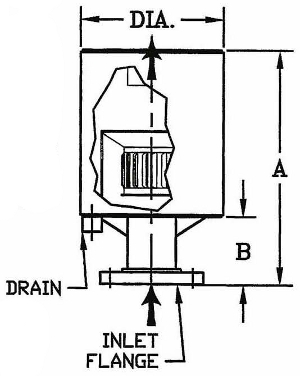

DIDION SEPARATOR COMPANY - EXHAUST HEAD SEPARATORS©
FLANGE SIZE*
DRAIN NPT
DIA.
A
B
2 1/2
1 1/2
13
22 1/2
5 1/2
3
1 1/2
13
22 1/2
5 1/2
4
1 1/2
13
22 1/2
5 1/2
5
2
17
27 1/2
5 1/2
6
2
18
29 1/2
5 1/2
8
2
22
38
7
10
1 1/2
26
44
7
12
2 1/2
30
56 1/2
8 1/2
14
2 1/2
32
64 1/2
8 1/2
16
2 1/2
36
69 1/2
8 1/2
18
2 1/2
40
79 1/2
11 1/2
20
2 1/2
44
85 1/2
11 1/2
24
2 1/2
50
95 1/2
11 1/2
26
2 1/2
53
112
12
28
2 1/2
56
119
12
30
2 1/2
60
126
12
33
2 1/2
65
139 1/2
14 1/2
36
2 1/2
70
150 1/2
14 1/2
CHOOSE YOUR PIPE SIZE TO NAVIGATE TO THIS SEPARATOR'S SPECIFICATIONS
