Type DSU Separator - Vertical Upflow In-Line Separator

Distinctions:

  1. A broad range of loads and applications are designed into each standard unit.

  2. All units are Code Stamped per ASME Section VIII, Div I.

  3. All standard 150# units are designed for 150 psig @ 500° F., and all standard 300# units are designed for 500 psig @ 650° F.

  4. Vessel, nozzles, flanges, and couplings are Carbon Steel. Internal elements are Stainless Steel.

  5. A corrosion allowance is designed into each unit for years of uninterrupted service.

  6. Custom designed separators for special loads and other pressure ratings are also available.

  7. Units are available in Stainless Steel and a variety of other alloys.

  8. Feel free to contact us with your flow design, and we will be happy to
    tell you the size of separator you need.

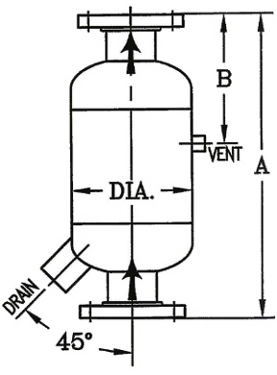

Dimensions are in inches.
PIPE SIZE
DRAIN NPT
VENT NPT
DIA.
A
B
2 1/2
1
1/2
8 5/8
20
12
3
1 1/2
1/2
10 3/4
22
12
4
1 1/2
1/2
12 3/4
26
16
5
2
1/2
14
30
18
6
2
1/2
14
34
11
8
2
3/4
16
44
12
10
2 1/2
3/4
20
52
14
12
2 1/2
3/4
24
66
18
14
2 1/2
3/4
24
72
20
16
2 1/2
3/4
30
78
22
18
3*
3/4
30
90
25
20
3*
3/4
36
96
27
22
3*
3/4
42
114
29
24
4*
3/4
42
114
32
26
4*
3/4
48
132
34
28
4*
3/4
48
138
38
30
4*
3/4
54
150
40
33
4*
3/4
60
162
43
36
4*
3/4
66
174
48
*w RF Slip-On Flange
