Flash Recovery Vessels

Distinctions:

  1. A broad range of loads and applications are designed into each standard unit.

  2. All units are Code Stamped per ASME Section VIII, Div I.

  3. All standard 150# units are designed for 150 psig @ 500° F., and all standard 300# units are designed for 500 psig @ 650° F.

  4. Vessel, nozzles, flanges, and couplings are Carbon Steel.

  5. A corrosion allowance is designed into each unit for years of uninterrupted service.

  6. Custom designed separators for special loads and other pressure ratings are also available.

  7. Units are available in Stainless Steel and a variety of other alloys.

  8. Feel free to contact us with your flow design, and we will be happy to tell you the size of separator you need.

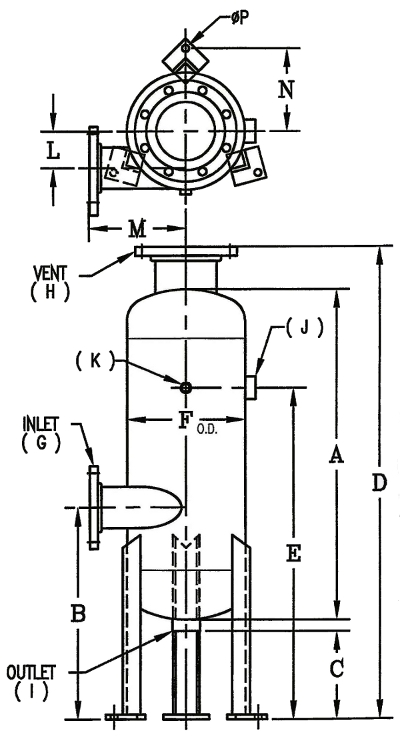

MODEL NUMBER
DSFT 6
DSFT 8
DSFT 12
DSFT 16
A
36
36
40
48
B
21
21
23
26
C
9 1/2
9 1/2
9 1/2
9 1/2
D
51
52
55 3/8
63 1/2
E
36
36
40
48
F
6 5/8
8 5/8
12 3/4
16
G
2
3
4
6
H
2 1/2
4
6
6
I
1 1/2
1 1/2
2
2
J
3/4
1
1 1/2
2
K
1/2
1/2
1/2
1/2
L
2
2 1/2
4
4 1/2
M
7 1/2
9
10 1/2
14
N
5 7/8
6 7/8
9
10 5/8
p
5/8
5/8
3/4
3/4

Dimensions are in inches.
